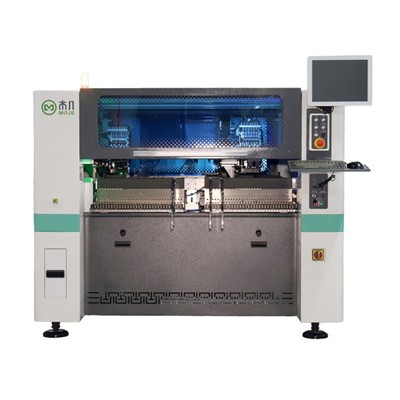

M520S teev tus qauv tshiab hauv high-precision Modular de-thiab-qhov chaw thev naus laus zis, muab cov versonility thiab kev ntseeg tau ntau yam rau cov neeg xav tau cov chaw ua haujlwm ntau lawm. UaDual linear Gantry Kev Tswj XyuasthiabLub sijhawm ua haujlwm dual-npab, no advance tshuab ntanees nkaum precision hau, xa cov kev tso chaw tshwj xeeb qhov tseeb ntawm kev ceev.
Muaj peev xwm tuav cov khoom siv los ntawm0201 txog 10x10mm, M520s yog ua kom haum rau kev lag luam xws li3c Electronics, Cov Khoom Siv Hauv Tsev, thiab LED TeebCov. Nws cov qauv tshwj xeeb hauvMiniled Los Ua Ke, koom ua keVibratoration Pub Rau Cov Ntaub NtawvTxhawm rau cov dej ntws tawm, kev ua haujlwm ntau dua, thiab cov nqi txo qis.
Nrog nws cov nta muaj zog thiab cov m520s p520 Txawm hais tias koj tab tom daws cov miniled tsim lossis ntau lawm ntim ntau lawm, M520s yog koj tus khub ntseeg siab rau thawb cov ciaj ciam ntawm cov sib dhos.
Kev tsis muaj
|
Kev Ua Tshwj Xeeb |
|
|
Txoj kev muab txoj cai |
Lub sij hawm tiag tiag pom lub zeem muag |
|
Tus naj npawb ntawm spindles |
2 caj npab * 10 nozzles (ncua: 12mm) |
|
Mounting ceev |
98000cph |
|
Mounting Qhov tseeb |
High precision hom {0. 035mm, CPK ntau dua lossis sib npaug nrog 1.33 Kev kub ceev hom ± {0. 05mm, cpk ntau dua los yog sib npaug rau 1.33 |
|
Cov Khoom Siv Sib Tham |
0201 ~ 22mm * 16 hli, H: 8mm |
|
SOP, QFP, BGA thiab lwm yam |
|
|
PCB Loj |
Dual Khiav: Max35 {4 {4}} hli (l) ×} × 300mm (L) × 60mm (W) H: 0.5 ~ 9mm |
|
Monorail: Max35 {4 4}} hli (l) × ntsis 550mm (L) × 60 hli (w) h: 0.5 ~ 9mm |
|
|
Feder Base |
|
|
Lub Zog \/ Cua Siab |
AC22 {{{0 v \/ 50Hz; 0. {5-0. 7mpa. 7Mpa |
|
Rated zog |
3.5kw |
|
Tshuab qhov hnyav |
1700kg |
|
Zuag qhia tag nrho |
830mm (L) * 2338mm (w) * 1650 hli (h) (PCB ntws yog nyob hauv Lia kev taw qhia) |
Cov lus piav qhia kom zoo dua
Precision ntawm kev kub ceev: ** ua tiav ua tau zoo li, qhov ruaj khov nyob thoob plaws kev sib txuas.
Dav daim ntawv thov tau: ** Adapts yooj yim rau muaj ntau hom modular thiab yob-rau-yob muag lub teeb ci ua ke los sib dhos.
Tus neeg siv-tus qauv tsim qauv: ** Txo cov nyom nrog ib qho yooj yim-rau-taw kev sib cuam tshuam.
Cov Zeem Muag Tshaj Tawm: ** Ntes thiab cov chaw txawm tias cov khoom sib xyaw tsawg tshaj plaws.
Muaj qhov xwm txheej
SM TelectRonic Cov Khoom Siv Patch, Aerospace, Tub Rog, Khoom Siv Hauv Tsev, Teeb thiab 3C Consumer Electronics
